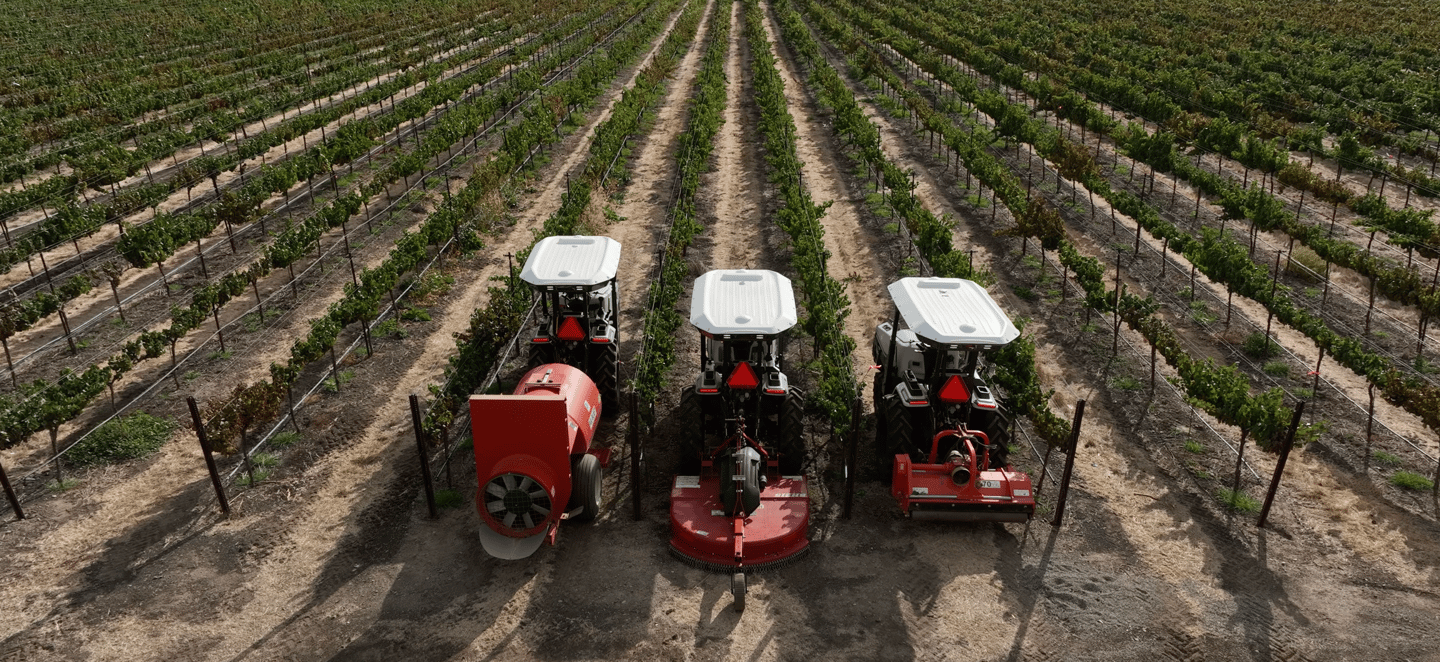

implements behind tractor

MK-V Compatible
Implement Specs

In general, Implements that meet the specifications below should work with the MK-V tractor. However, it is dependent on the specific implement make model, environment and operating conditions.


Implement Type Specification Runtime
Trailer Drawbar Max Trailer Load 5,500 lbs (2,500 kg)
Max Drawbar Vertical Load 1,100 lbs (500 kg)
Mower



Rotary Max Cutting Width 84 in (1830 mm)
5’ Rotary Mower in tall grass: 7-9 hours

4’ Rotary Mower in tall grass: 7.5-9.5 hours
Max Weight 1,650 lbs (750 kg)
Max PTO HP 40 HP (30 KW)
Flail

Max Cutting Width 72 in (1830 mm)

5’ Flail Mower in tall grass: 5-6 hours

4’ Flail Mower in tall grass: 6-7 hours

Max Weight 1,650 lbs (750 kg)
Max PTO HP 40 HP (30 KW)
Sprayer Rear 3PT Max Tank Capacity 150 gal (575 L)
Max PTO HP 40 HP (30 KW)
Drawbar Max Tank Capacity 300 gal (1135 L)
Max PTO HP40 HP (30 KW)
Disc Harrow Rear 3PT Max Width 72 in (1830 mm)  5-7 hours
Max Weight 1,650 lbs (750 kg)
Rotary Tiller Rear 3PT Max Tilling Width 72 in (1830 mm)
Max Weight 1,650 lbs (750 kg)
Max PTO HP 40 HP (30 KW)
Cultivator Rear 3PT Max Width 48 in (1220 mm)
Max Weight 1,650 lbs (750 kg)
Undervine Weeders Rear 3PT Max Hydraulic Flow12.0 gpm (45 l/min)   8-10 hours
Max Weight1,650 lbs (750 kg)
Max PTO HP40 HP (30 KW)
Manure or Compost Spreader Drawbar Max Hydraulic Flow 12.0 gpm (45 l/min)
Max PTO HP 40 HP (30 KW)
Max Trailer Load 5,500 lbs (2,500 kg)
Max Drawbar Vertical Load 1,100 lbs (500 kg)
